Description:

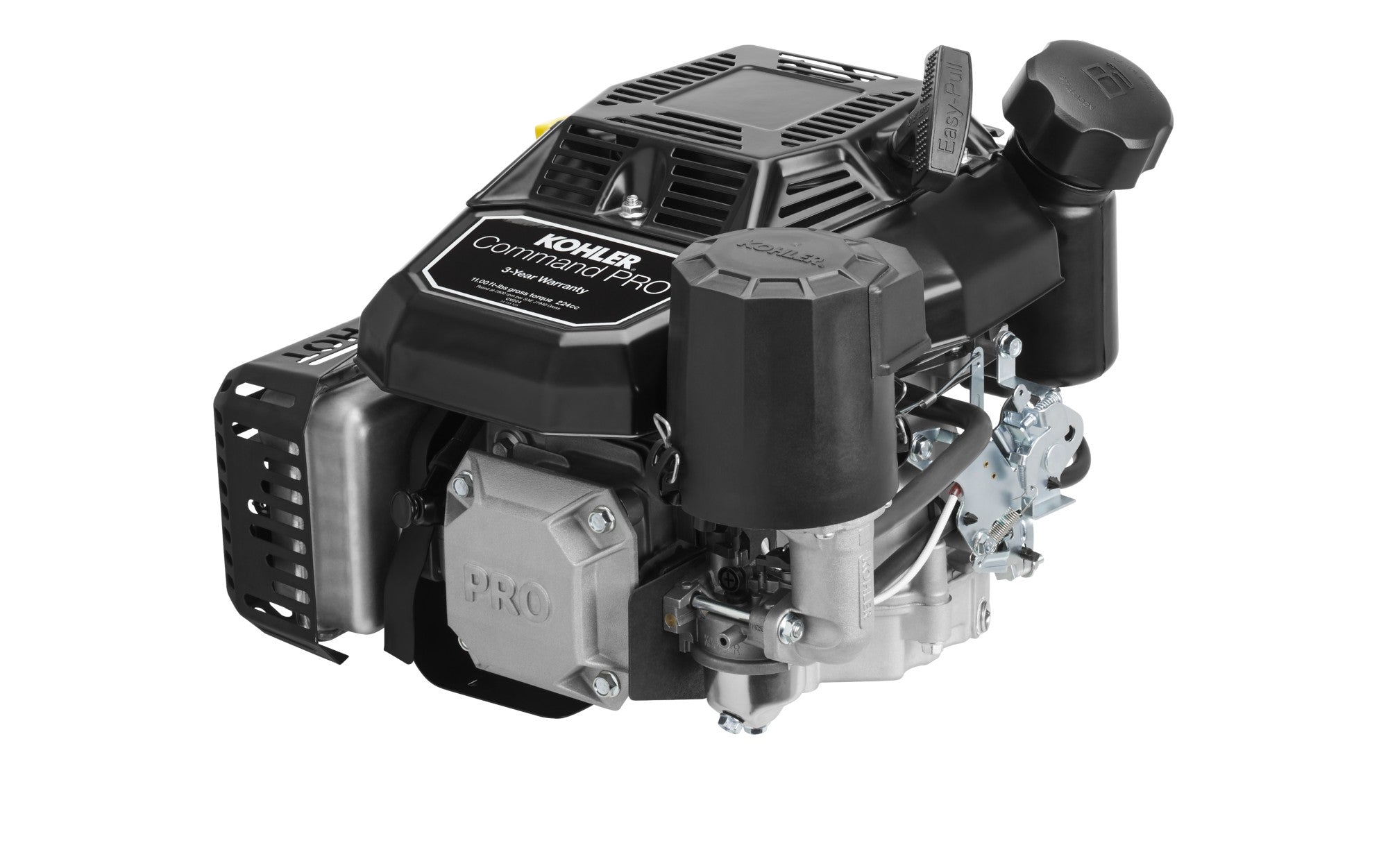

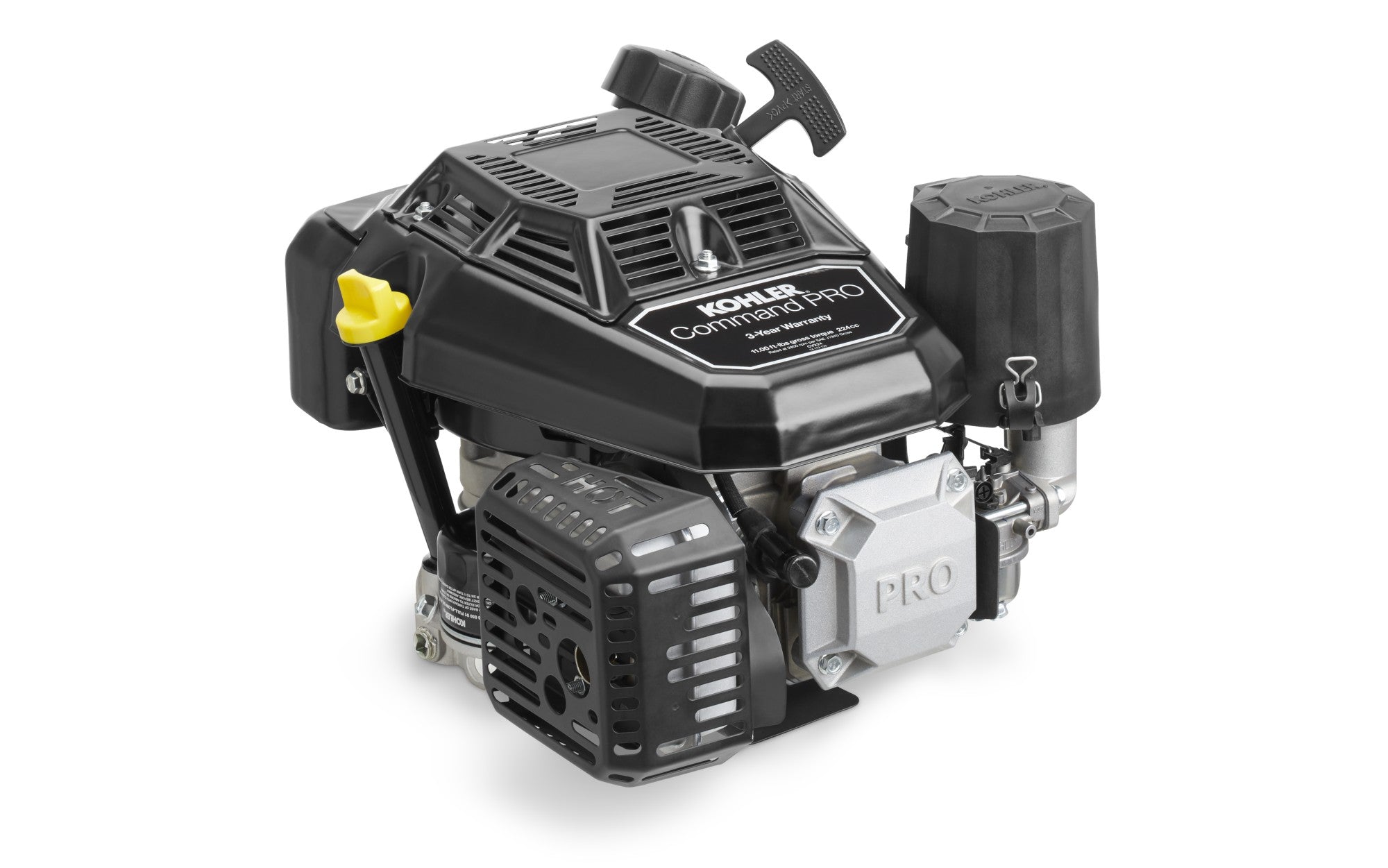

With best-in-class power,* our all-new Command PRO CV224 is the ultimate engine for commercial walk-behind mowers.

Features:

• Torque output: 11.0 ft-lbs
• 3-year limited commercial warranty
• Enjoy effortless starts thanks to our Easy-Pull™ technology
• Easy pours and less spilling with Accu-Fill® fuel tank's 45% larger angled fuel neck
• Consistent-Cut™ technology maintains engine speed for a cleaner turf cut, even in tall, wet grass
• Cast-iron cylinder liners add durability and engine protection

Specifications:

• Engine Type: Four-cycle, gasoline, OHV
• Construction: Cast iron cylinder bore, aluminum block
• Model: CV224
• Engine Classification: Commercial

Performance

• Displacement: 224 cm³ (13.7 in³)
• Bore: 73 mm (2.9 in)
• Stroke: 53.5 mm (2.1 in)
• Maximum Torque: 14.9 Nm (11 lb-ft) @ 2,600 RPM
• Compression Ratio: 9.2:1

Lubrication & Capacity

• Lubrication System: Dual – Full Pressure & Splash
• Oil Capacity: 0.59 L (0.625 US qt)

Dimensions & Weight

• Dry Weight: 16.8 kg (37 lbs)
• Dimensions (L x W x H):
• 399 x 353 x 281 mm
• (15.7 x 13.9 x 11.1 in)
